Delta X 100-12 Counter Surveillance Spectrum Analyzer

The Delta X 100-12 Counter Surveillance Spectrum Analyzer offers a full arrangement of sweeping and debugging equipment.The DX100-12 offers broadband detection to analyze unwanted audio and video surveillance threats. The portability, and low demand of knowledge needed to operate the DX100-12 make our sweeping system suitable for professional and non-professional users.

Broadband RF Detection

Analyzing potential surveillance threats means you have to be ready for any and all possibilities. With the Delta X 100-12 Counter Surveillance Spectrum Analyzer you will have inclusive broadband frequency detection ranging from 100 kHz - 12.4 GHz . The width of the  DX100-12’s detection range insures you have the capabilities to detect any bug transmitting in your area.

Whether you have concerns about corporate espionage, theft of trade secrets, or are certain your home or professional environment has been bugged, the Delta X 100-12 has you covered.

Check out a glimpse of the spectrum software below for details that show how the DX100-12 assess digital surveillance bugs.

Delta X Advantage

With or without encryption, whether the signal is digital or analog, for continuous or intermittent transmissions, the Delta X 100-12 Counter Surveillance Spectrum Analyzer quickly and reliably captures and display the signals. Below are a few highlights detailing DX100-12 methods used to effectively sweep for unwanted bugs.

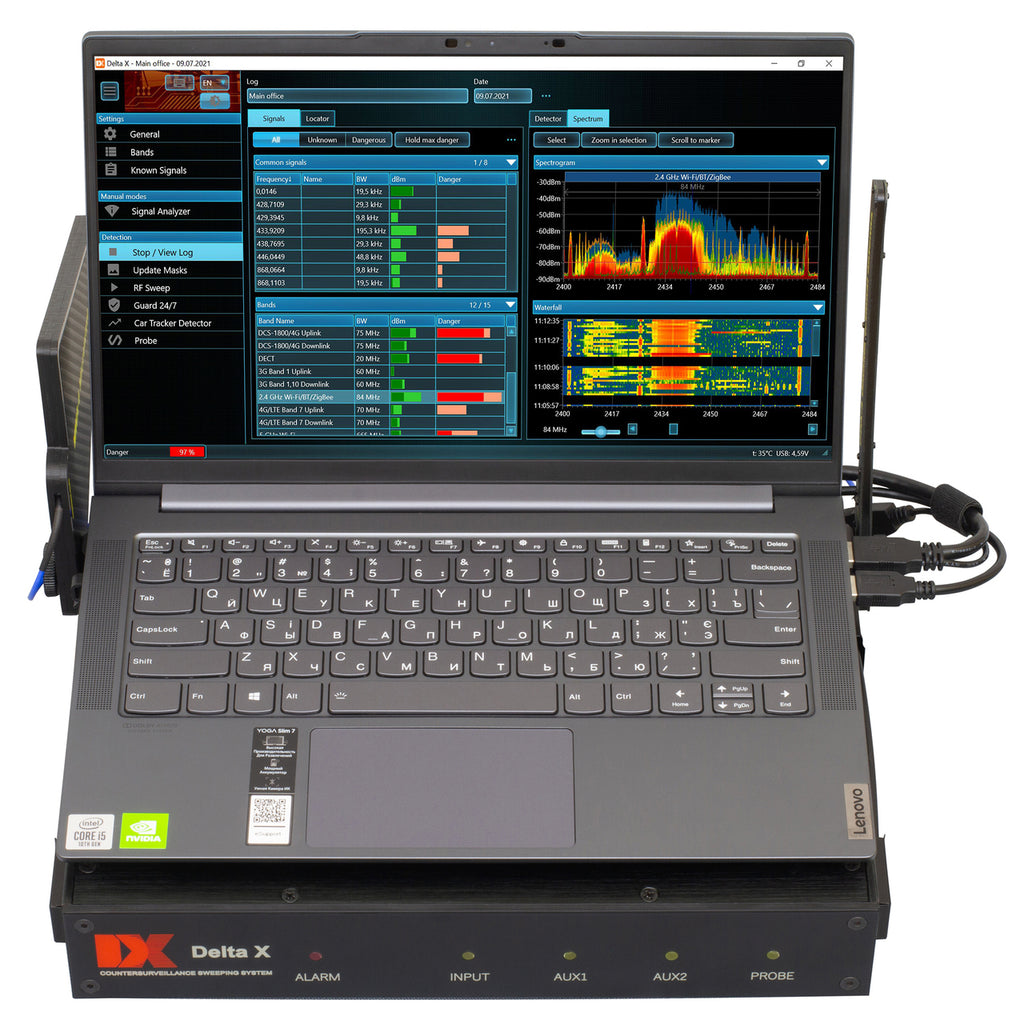

✔ Portable system controlled by users laptop

✔ All spectrum traces and alarms are logged during detection period

✔ Supports storage of known signals via “Signal Table” function

✔ Handles detection across wireless bands, GSM, CDMA, 3G, 4G/LTE, WiFi, Bluetooth and more

✔ Advanced signal recognition method partitions known and dangerous signals for efficient threat assessment

✔ Reject external interference from neighboring mobile phone and/or WiFi signals

✔ Danger level assessment algorithm uniquely assigns a danger level to each frequency

✔ Capable of detecting covert bugging devices and transmitters hidden within the spectrum of other signals

✔ Capable of assessing signals with ‘short-burst’ like GPS, Bluetooth, and other wireless devices that transfer data intermittently

Features:

• Update rate 100 MHz per second

• Frequency range 100 kHz – 12400 MHz

• Signal detection time: 60-120 seconds

• Short burst signal detection

• Powered from the laptop’s USB

• Can monitor the RF environment 24 hours a day with data logging

• Can detect and locate the transmitters simultaneously

• Finds hidden surveillance devices employing the digital standards GSM, 3G, 4G/LTE, Bluetooth, WiFi, DECT, etc.

• Detects illegal information transmission in AC, telephone,

• Has 20-50 times higher sensitivity comparing to conventional RF detectors

• Ethernet, alarm and other wires as well as in the infrared range

• Supports storage of an unlimited quantity of signals.

• Full information is stored in the log and can be reviewed at any time.

• Multiple logs are supported

• Demodulation of audio in FM, AM, USB, LSB, CW (adjustable BW 3…240 kHz)

Specifications

• Update rate: 100 MHz/sec

• Frequency range: 100 kHz - 12400 MHz

• Time of detection (Minimal time of signal’s existence needed for its detection): 60-120 seconds

• Spectrum resolution: 15 kHz

• Occupied disk space per 24 hours: 1 Gb

• Temperature Range: 0°C to +50°C

• Demands on computer: Intel® Atom™ N2600 or Intel® Core™ i3; 2 USB 2.0; Windows 7, 8, 10

• Displayed dynamic range: -90…-10 dBm

• Displayed spectrum spans: 0.5, 1, 2, 5, 10, 25, 50, 100, 200, 500, 1000, 2000, 3000, 6000 MHz

• Spectrum graphs: Spectrogram, Waterfall

• Spectrogram’s displayed data: Persistence, Live, Max, Threshold

• Detector’s modes: Wide-Range, Signal, Selection

• Fields of ‘Signals’ table: Frequency, Bandwidth, Name, dbm Level, dbm Peak Level, Danger Level, Peak Danger Level

• Fields of ‘Bands’ table:Begin, End, Name, Type, Threshold, Priority, Tracker detection

• Fields of ‘Known Signals’ table: Frequency, BW, Name, Modulation

Includes:

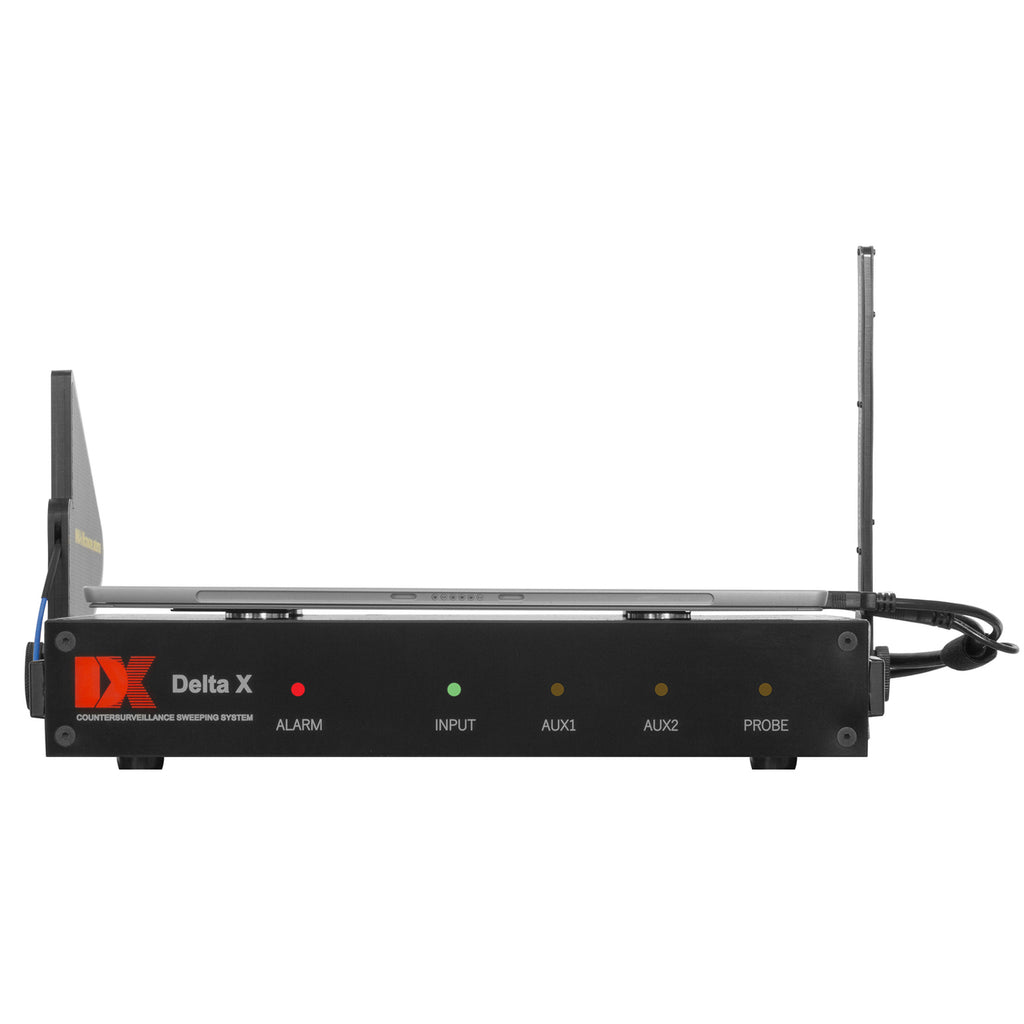

• Main unit with the built-in spectrum analyzer, antenna switcher and LF converter

• Software Delta X on the USB flash memory

• ODA-4 - omnidirectional antenna

• Coaxial extension cable 5 m

• MWA-6 - microwave antenna

• MWA-12 - microwave antenna

• High voltage probe

• Low voltage probe with alligator connectors

• In-line modular adapter

• Infrared/very-low frequency probe

• Tripod convertible to handle

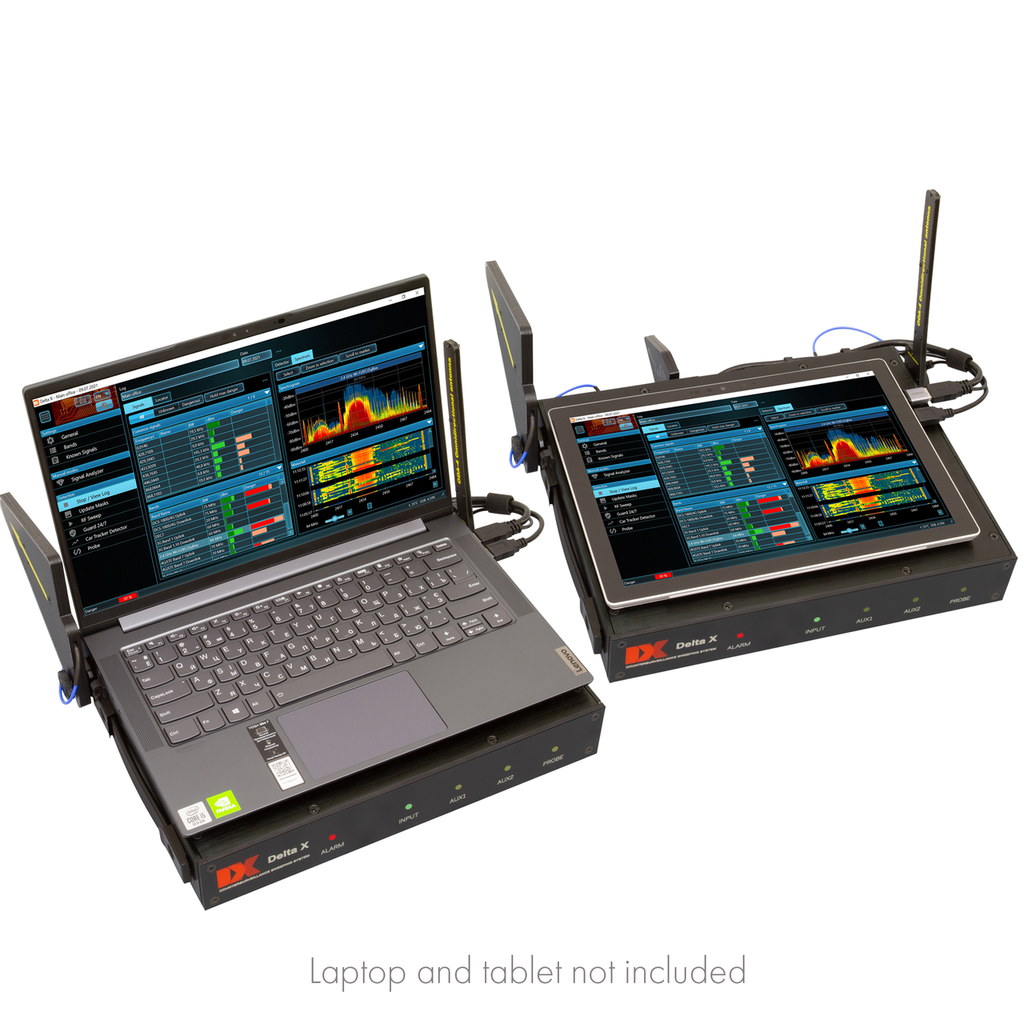

• (Laptop/PC NOT included)
